Drawn 27/8/92

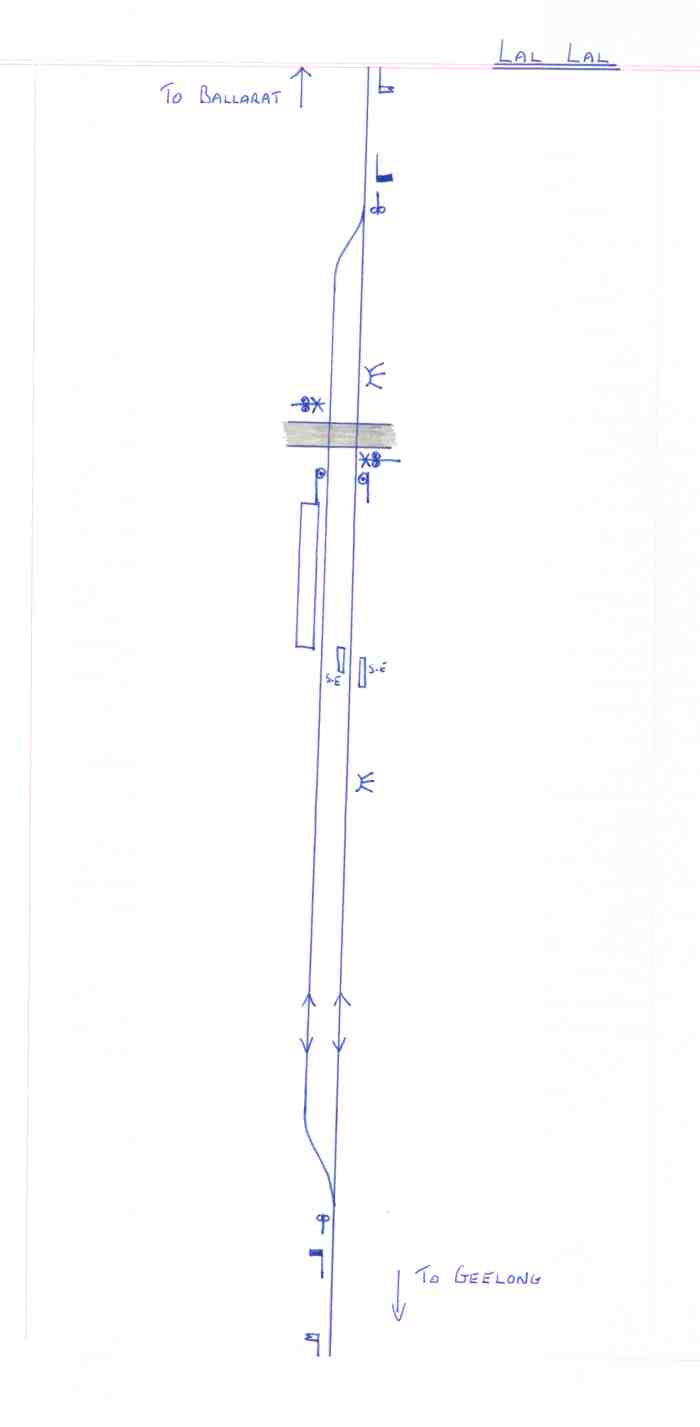

Note: In this diagram, the point lever type symbols are actually counterweight cable tensioners used in the double pull cable operated points.
