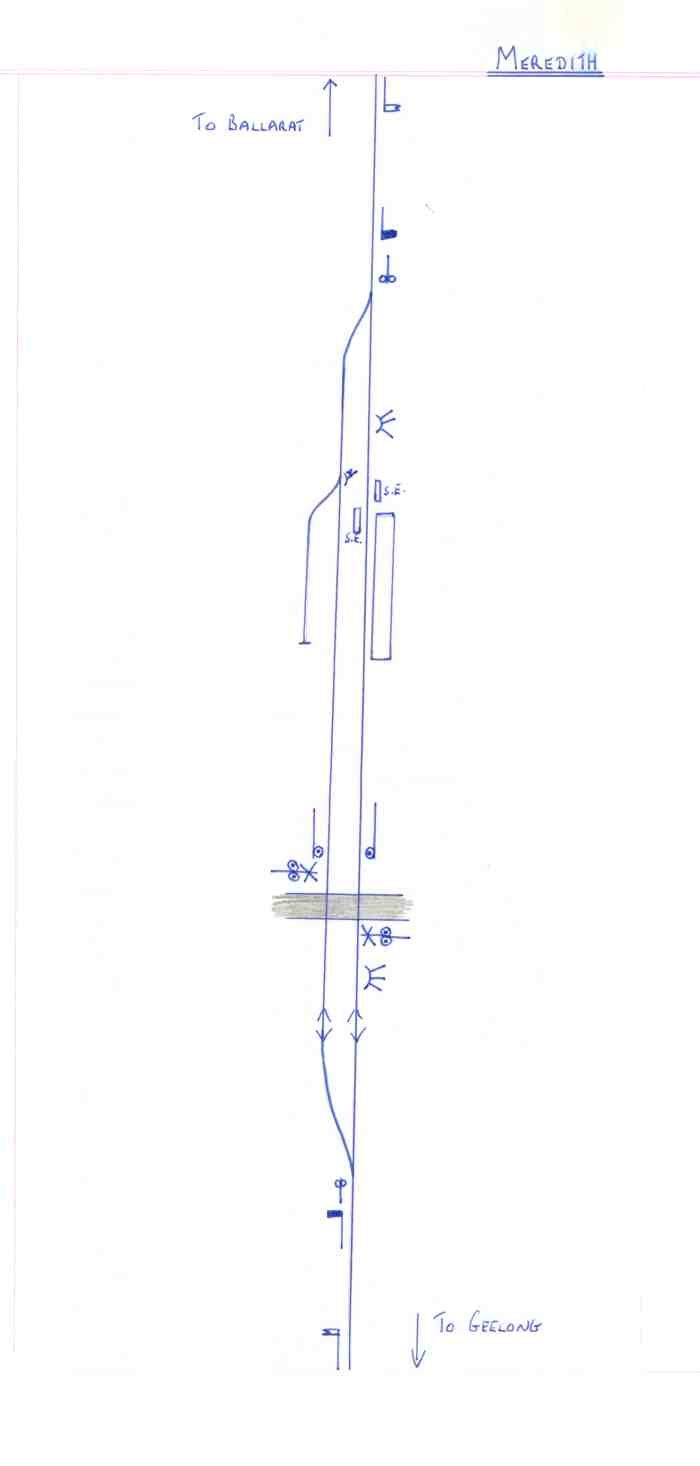

Meredith
Drawn 27/8/92
Note: In this diagram, the point lever type symbols are actually
counterweight cable tensioners used in the double pull cable operated
points.
© Brad McArthur, 2002. Feel free to use this image but please
acknowledge the owner in any subsequent use.
